ANPING FUHUA WIRE MESH MAKING CO.,LTD
| betaling Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. orde: | 1 Roll |
| vervoer: | Ocean,Land,Air |
| Haven: | XINGANG PORT |
Materiaal: Stalen draad, ROESTVRIJ STALEN DRAAD, Ijzerdraad
Oppervlakte Behandeling: PVC gecoat, Verzinkt
Soorten: Prikkeldraad Coil
Type Mes: Enkele scheermes, Cross Razor
Model nr.: Bto-22
Barbed Distance: 42mm
Barb Length: 30mm
Coil Outside Diameter: 700mm
Color: Silver
450mm,500mm,600mm,750mm,900mm: 56loops
Transport Package: Wooden Case, Gunny Bag
Specification: BTO18 BTO22, BTO28, CBT65
Trademark: RUILI
Origin: Anping, Hebei
GS-code: 73130000
productiecapaciteit: 100ton/Month
Material: Galvanized Iron Wire
Twist Method: Single Twist
Toepassing: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 2.5mm
| Verkoopeenheden | : | Roll |
The file is encrypted. Please fill in the following information to continue accessing it

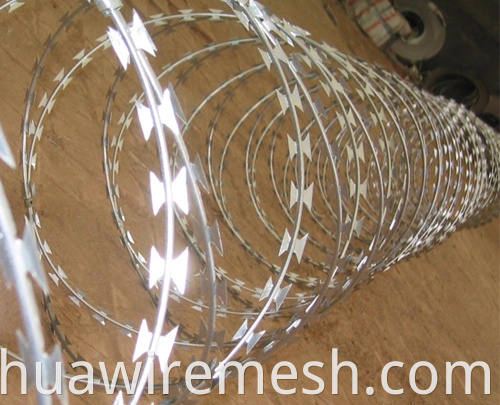

Scheermogelijke hek
Anping Fuhua Wire Mesh Making Co., Ltd, is gespecialiseerd in het exporteren van draadgaas- en veiligheidsproducten via de wereld. Ons bedrijf is opgericht in 1988 en is de afgelopen jaren dramatisch gegroeid, is een van de beste exporteurs van draadgaas in de provincie Hebei geworden.
Materialen: warmgegalvaniseerd, elektro gegalvaniseerd, roestvrij staal, ijzerdraad, PVC-gecoate draad
Type: CBT (concertina barbed tape) en BTO (hindernissen met weerhaken))
Type: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65 ETC
Buiten 450 mm, 500 mm, 700 mm, 600 mm, 980 mm, 1000 mm enz. Als klanten vragen
[Matriaal]
Elektro gegalvaniseerde kerndraad en mes
Gegalvaniseerde kerndraad en mes met warm gedompeld
Statess Steel -kerndraad en mes
PVC gecoate kerndraad en mes
Gegalvaniseerde kerndraad+roestvrijstalen mes
Razor -type: enkel type, kruistype (3 of 5clips per cirkel)

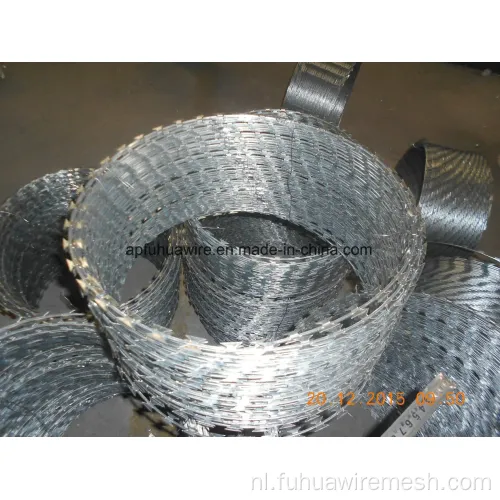

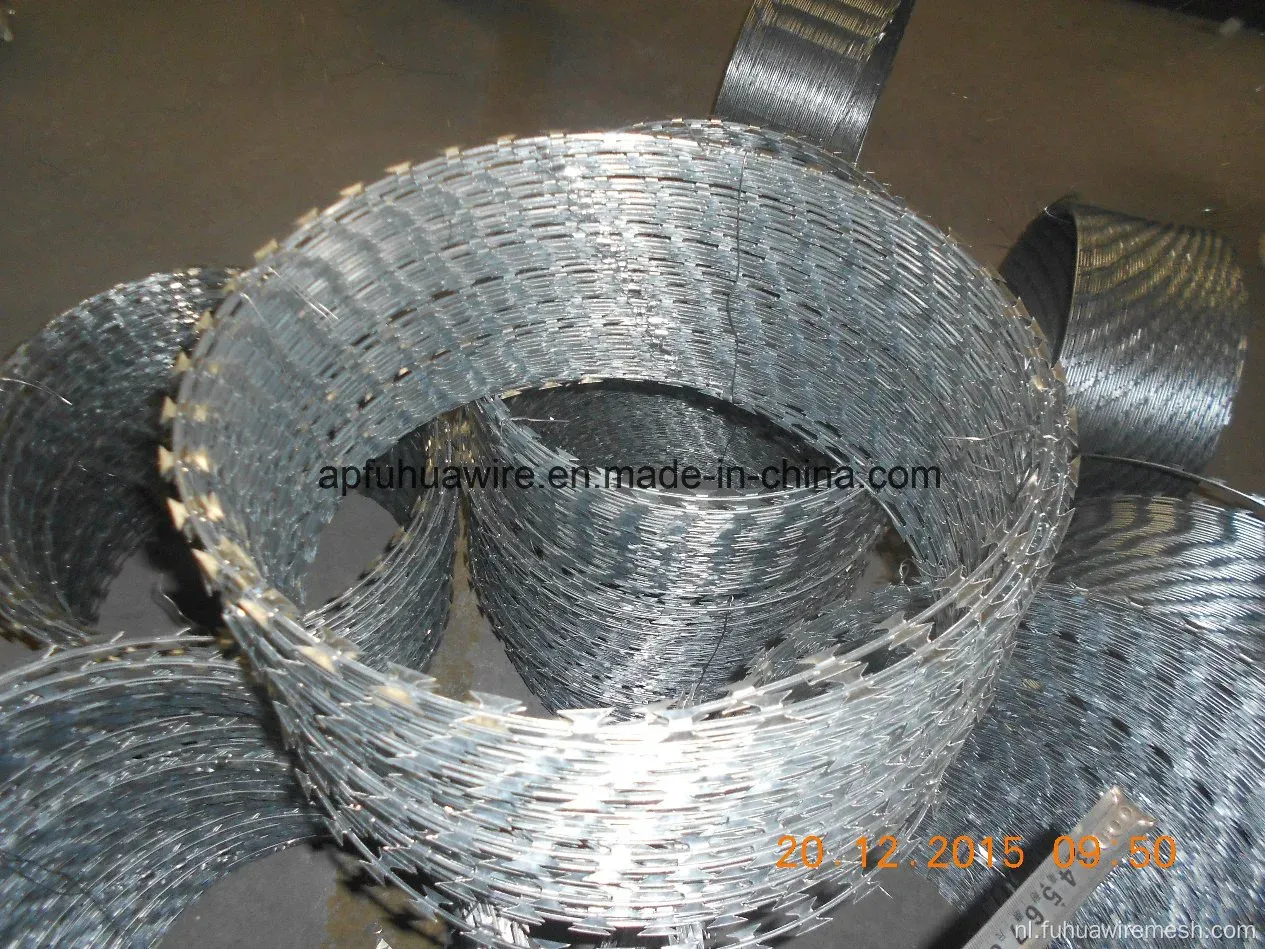

Scheermes met prikkeldraad
Gegalvaniseerd verzinkte zinkcoatinggraad:
| Outside diameter | NO. of loop | Standard Length per Coil | Type | Notes |
| 450mm | 33 | 8m | CBT-60,65 | Single coil |
| 500mm | 41 | 10m | CBT-60,65 | Single coil |
| 700mm | 41 | 10m | CBT-60,65 | Single coil |
| 960mm | 53 | 13m | CBT-60,65 | Single coil |
| 500mm | 102 | 16m | BTO-10,15,22,30 | Cross type |
| 600mm | 86 | 14m | BTO-10,15,22,30 | Cross type |
| 700mm | 72 | 12m | BTO-10,15,22,30 | Cross type |
| 800mm | 64 | 10m | BTO-10,15,22,30 | Cross type |
| 960mm | 52 | 9m | BTO-10,15,22,30 | Cross type |
| Note: The blade types and specifications can be customized according to the customers' actual equirements. BTO-10 and BTO-22 are normally used in production of cross type. | ||||
| High | Standard cover length | Weight |
| 500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) |
| 700mm(28inch) | 15M(50ft) | 13kg(29lbs) |
| 900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) |
| Hole Size | Hole Style | Width | Length | Blade style |
| 100mmX100mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22.30 CBT-60.65 |
| 100mmX150mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 100mmX200mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| 150mmX300mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
| Notes: Any sizes can be customized by customer's request. | ||||
Draad:
Grade A: Draad 60-80 g/m2 mes: 60-80 g/m2
Grade B: Draad 80-120 g/m2 mes: 100-150 g/m2
Grade C: Draad 160-200 g/m2 mes: 230-270 g/m2
