Gelast Razor Mesh voor de muurbeveiliging
Ontvang de meest recente Prijsbetaling Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,EXW |
Min. orde: | 1 Roll |
vervoer: | Ocean,Land,Air,Express |
Haven: | TIANJIN ,QINGDAO |
betaling Type: | L/C,T/T |
Incoterm: | FOB,CFR,CIF,EXW |
Min. orde: | 1 Roll |
vervoer: | Ocean,Land,Air,Express |
Haven: | TIANJIN ,QINGDAO |
merk: Ruili
Plaats Van Herkomst: China
Materiaal: Ijzerdraad, Stalen draad
Oppervlakte Behandeling: Verzinkt, PVC gecoat
Soorten: Prikkeldraad Coil, Prikkeldraad Mesh, Prikkeldraad Strand
Type Mes: Enkele scheermes, Cross Razor
Model nr.: BTO-22, BTO-30
Barbed Distance: 4"
Barb Length: 22mm
Coil Outside Diameter: 450mm
Color: Galvanized
Width: 2m Max
Height: 2m
Transport Package: Wooden Case, Gunny Bag
Specification: BTO18 BTO22, BTO28, CBT65
Trademark: RUILI
Origin: Anping, Hebei
GS-code: 73130000
productiecapaciteit: 100ton/Month
Material: Galvanized Iron Wire
Twist Method: Welded
Toepassing: Protecting Mesh, Fence Mesh
Finish: Hot Dipped Galvanized
Razor Barbed Type: Cross Razor
Wire Gauge: 2.5
Verkoopeenheden | : | Roll |
The file is encrypted. Please fill in the following information to continue accessing it
Materialen: warmgegalvaniseerd, elektro gegalvaniseerd, roestvrij staal, ijzerdraad, PVC-gecoate draad
Type: CBT (concertina barbed tape) en BTO (hindernissen met weerhaken))

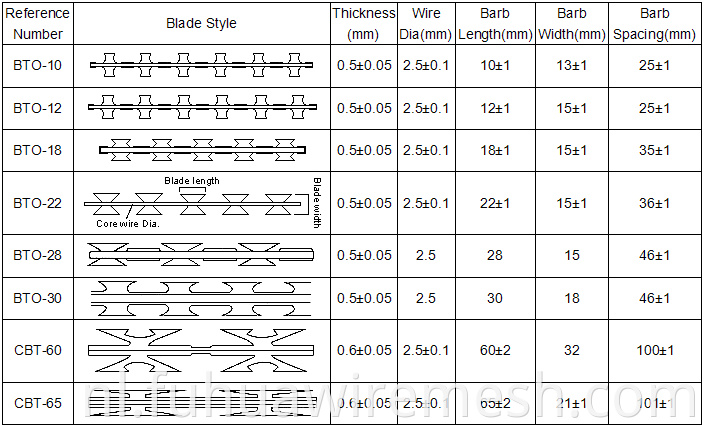

Type: BTO-10, BTO-12, BTO-15, BTO-18, BTO-22, BTO-30, CBT-60, CBT-65 ETC
Buiten 450 mm, 500 mm, 700 mm, 600 mm, 980 mm, 1000 mm enz. Als klanten vragen
[Matriaal]
Elektro gegalvaniseerde kerndraad en mes
Gegalvaniseerde kerndraad en mes met warm gedompeld
Statess Steel -kerndraad en mes
PVC gecoate kerndraad en mes
Gegalvaniseerde kerndraad+roestvrijstalen mes
Razor -type: enkel type, kruistype (3 of 5clips per cirkel)
Scheermes met prikkeldraad
Gegalvaniseerd verzinkte zinkcoatinggraad:
Outside diameter | NO. of loop | Standard Length per Coil | Type | Notes |
450mm | 33 | 8m | CBT-60,65 | Single coil |
500mm | 41 | 10m | CBT-60,65 | Single coil |
700mm | 41 | 10m | CBT-60,65 | Single coil |
960mm | 53 | 13m | CBT-60,65 | Single coil |
500mm | 102 | 16m | BTO-10,15,22,30 | Cross type |
600mm | 86 | 14m | BTO-10,15,22,30 | Cross type |
700mm | 72 | 12m | BTO-10,15,22,30 | Cross type |
800mm | 64 | 10m | BTO-10,15,22,30 | Cross type |
960mm | 52 | 9m | BTO-10,15,22,30 | Cross type |
Note: The blade types and specifications can be customized according to the customers' actual equirements. BTO-10 and BTO-22 are normally used in production of cross type. |
High | Standard cover length | Weight |
500mm(20inch) | 15M(50ft) | 9.5kg(21lbs) |
700mm(28inch) | 15M(50ft) | 13kg(29lbs) |
900mm(36inch) | 15M(50ft) | 14.5kg(32lbs) |
Hole Size | Hole Style | Width | Length | Blade style |
100mmX100mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22.30 CBT-60.65 |
100mmX150mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
100mmX200mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
150mmX300mm | square or diamond | 1.2m | 2.4m | BTO-10.15.22 CBT-60.65 |
Notes: Any sizes can be customized by customer's request. |
Draad:
Grade A: Draad 60-80 g/m2 mes: 60-80 g/m2
Grade B: Draad 80-120 g/m2 mes: 100-150 g/m2
Grade C: Draad 160-200 g/m2 mes: 230-270 g/m2
vlakke draad
Mesh Grootte: 75*150,150*300
