ANPING FUHUA WIRE MESH MAKING CO.,LTD
| betaling Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. orde: | 1 Piece/Pieces |
| vervoer: | Ocean,Land,Air |
| Haven: | TIANJIN PORT |
Bearing Bar Pitch: 12.5, 15, 20, 23.85, 25, 30, 30
Twisted Cross Bar Pitch: 38.1, 50, 60, 76, 80, 100, 101.6, 120mm,
Oppervlakte behandeling: Black, Self Colour, Hot DIP Galvanized, Painted
Color: Silver,Black
Transport Package: by Pallet or According to The Buyer′s Requirement
Trademark: fuhua or the buyer′s mark
Origin: Anping, China
GS-code: 7308900000
productiecapaciteit: 1000 Rolls/Day
certificaat: CCC, ISO
Toepassing: Steel Structure Walkway, Foot Pedal, Drain Cover
Shape: Flat Shape
Manufacturing Method: Machine Welding
Material: Carbon Steel
Bearing Bar: 25X3, 25X4, 25X4.5, 25X5, 30X3, 30X4, 30X4.5, 30X5
| Verkoopeenheden | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

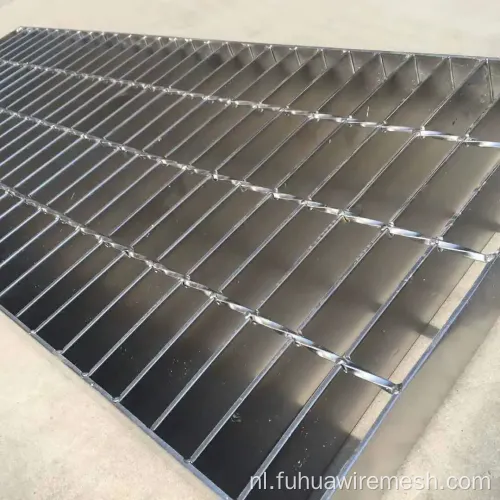

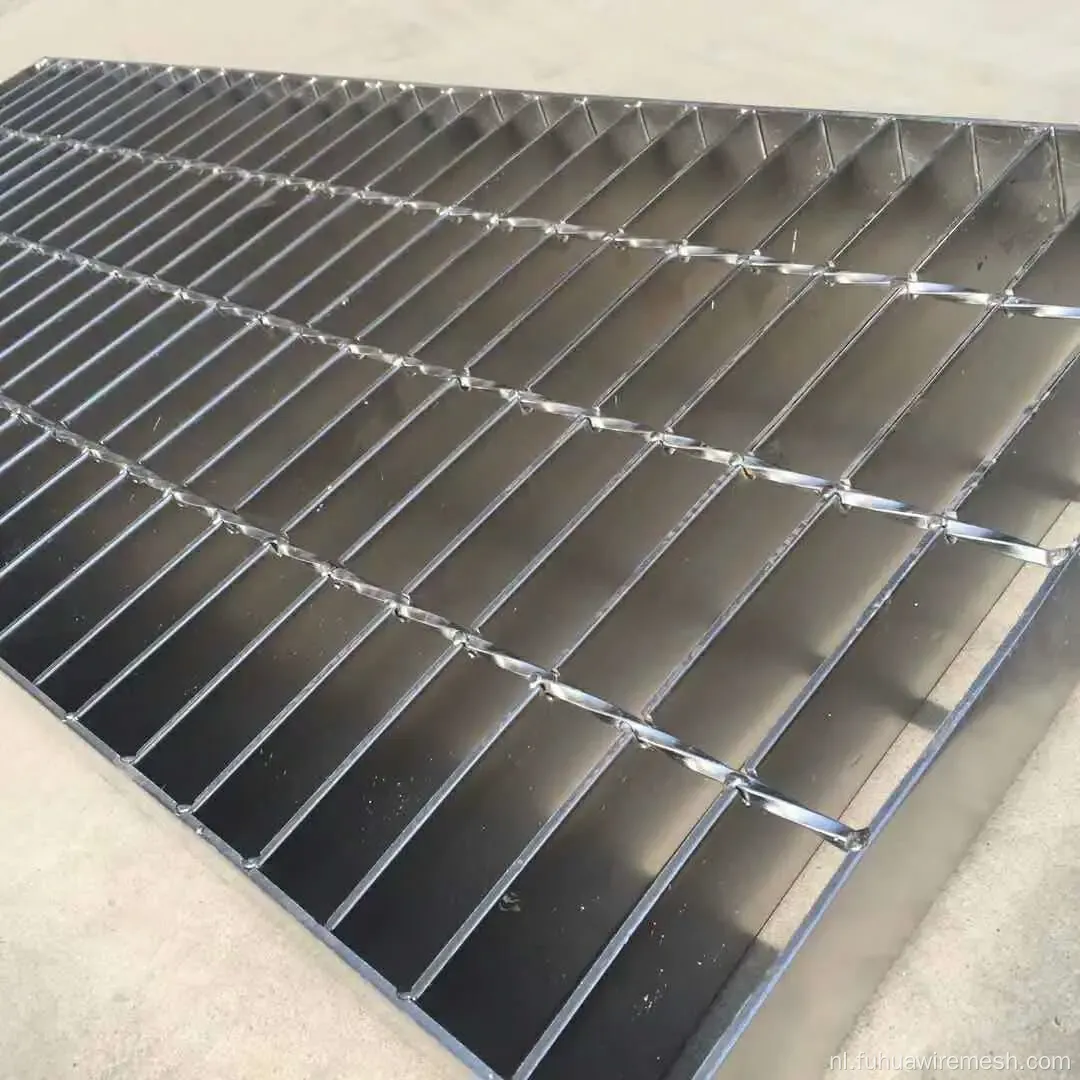

Stalen rooster (vlak stalen rooster plat stalen rooster en gekarteld stalen rooster / tandvorm stalen rooster)
1) Lagerbalk (laadstaaf) (mm): 20 x 3 tot 100 x 9; de specificatie van "i-sectie" is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.
2) Lagerstaafveld (midden tot centrum): 12,5 tot 100 mm enz., Volgens de vereiste van de klant en 30, 40, 60 mm worden aanbevolen, is de Amerikaanse standaard beschikbaar
3) Cross Bar Pitch (midden tot midden): van 18,5 tot 101,6 mm enz., Wordt ook volgens de vereiste van de klant en 50, 100 mm worden aanbevolen, Amerika -standaard is beschikbaar.
4) STALEN RAPEN MATERIAAL: Q235 Staal of roestvrijstalen rooster.
5) Behandeling van stalen roosteroppervlak: onbehandeld, schilderen of heet gedompeld galvaniseren
6) Kwaliteitsnorm:
Stalen roosterstandaard: China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Groot-Brittannië BS4592-1987
Australië AS1657-1992
Staalstandaard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Hot Dip Galvanising Standard: China GB / T13912-92 / ASTM (A123) / BS729
7) Toepassing van stalen rooster: vloer; catwalk; mezzanines/terrassen; trap loopvlak; schermen; kluis bin vloer; ramp; dock/magazijn; allerlei geuldeksel; raam- en machinerie veilige bewakers; wastekrek; ; Gesuspendeerd plafond; afvoerputdeksel, enz
specificaties
(1) Max paneelgrootte beschikbaar voor 1000x5800 mm
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
(2) Oppervlaktebehandeling en appliacatie: molenafwerking, hete dip gegalvaniseerd, geverfd
| Bearing bar type | Flat bar | I bar | Serrated bar | |
| Cross bar type | Twisted bar | Round bar | flat bar | |
| Production process | welded | Pressure locked | ||
| Surface treatment | Self-colour | Galvanized | painted | |
| application | Platform | walkway&floor | Trench cover | Steel stair treads |
| Suspended ceiling | Barrier fence |
| Steel Grating Standard | |||
| Steel Grating Standard | Steel Standard | Galvanizing Standard | |
| China Standard | YB/T 4001.1-2007 | GB700-88 | GB/T13912-2002 |
| USA Standard | ANSI/NAAMM (MBG531) | ASTM (A36) | ASTM (A123) |
| U.K. Standard | BS4592 | BS4360 (43A) | BS729 |
| Australia Standard | AS1657 | AS3679 | AS1650 |
| Deutsche Standard | DIN24537 | DIN17100-80 | DIN50976 |
